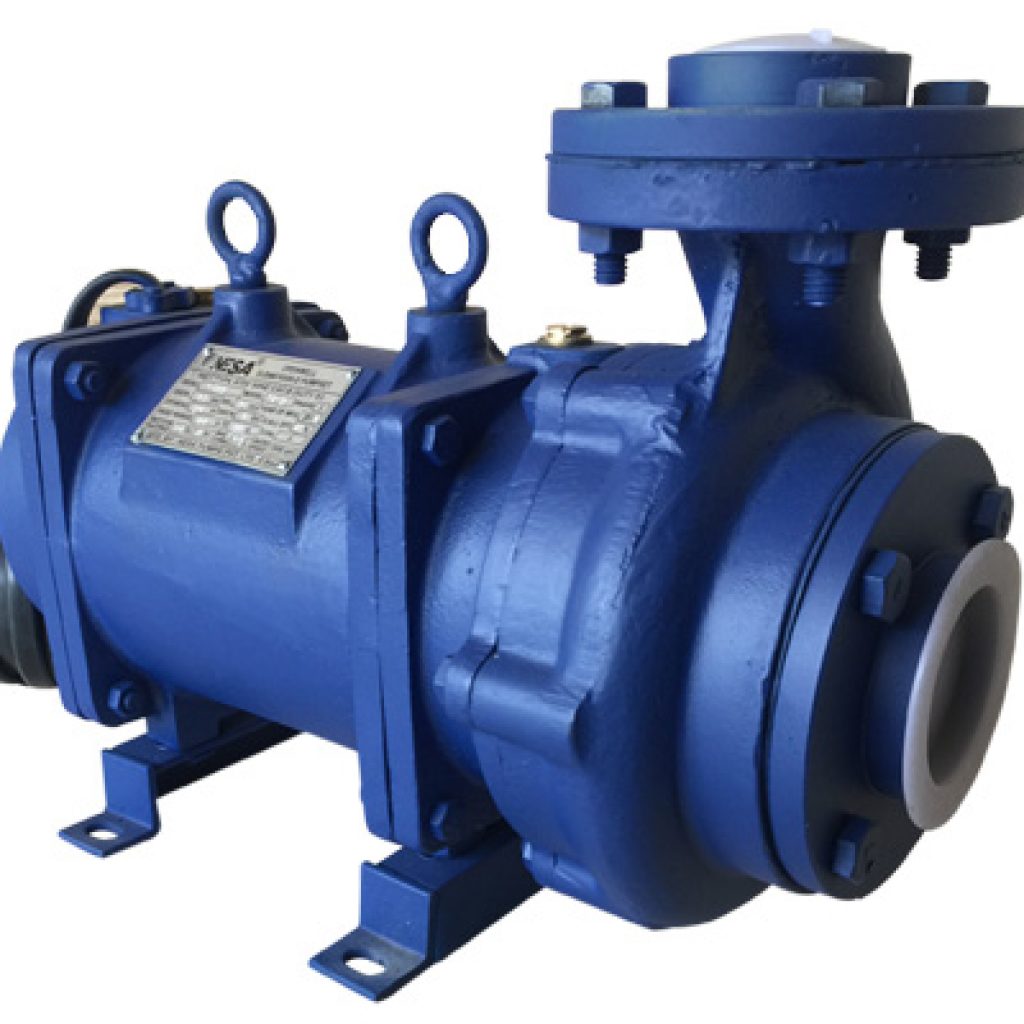

V8 SUBMERSIBLE OPEN WELL CI BODY MONOSETS ALLUMINIUM ROTOR & COPPER ROTOR
|
||||||||||||||
| Pump Type | HP. | SUC.*DEL. In mm | Performance Values | |||||||||||
| Total Head In Meters | ||||||||||||||
| 38 | 36 | 34 | 32 | 30 | 28 | 26 | 24 | 22 | 20 | 18 | F/O | |||
| Discharge in Lpm | ||||||||||||||
| NHZ8HH | 3 | 65*50 | – | – | – | – | – | – | – | – | 360 | 425 | 490 | 590 |
| NHZ8LH | 3 | 65*65 | – | – | – | – | – | – | 192 | 289 | 367 | 430 | 484 | 766 |
| NHZ8HH | 5 | 65*50 | 304 | 360 | 403 | 441 | 471 | 499 | 526 | 553 | 583 | 606 | – | 661 |
| NHZ8LH | 5 | 65*65 | – | – | – | – | 496 | 577 | 655 | 715 | 765 | 802 | 835 | 1024 |
