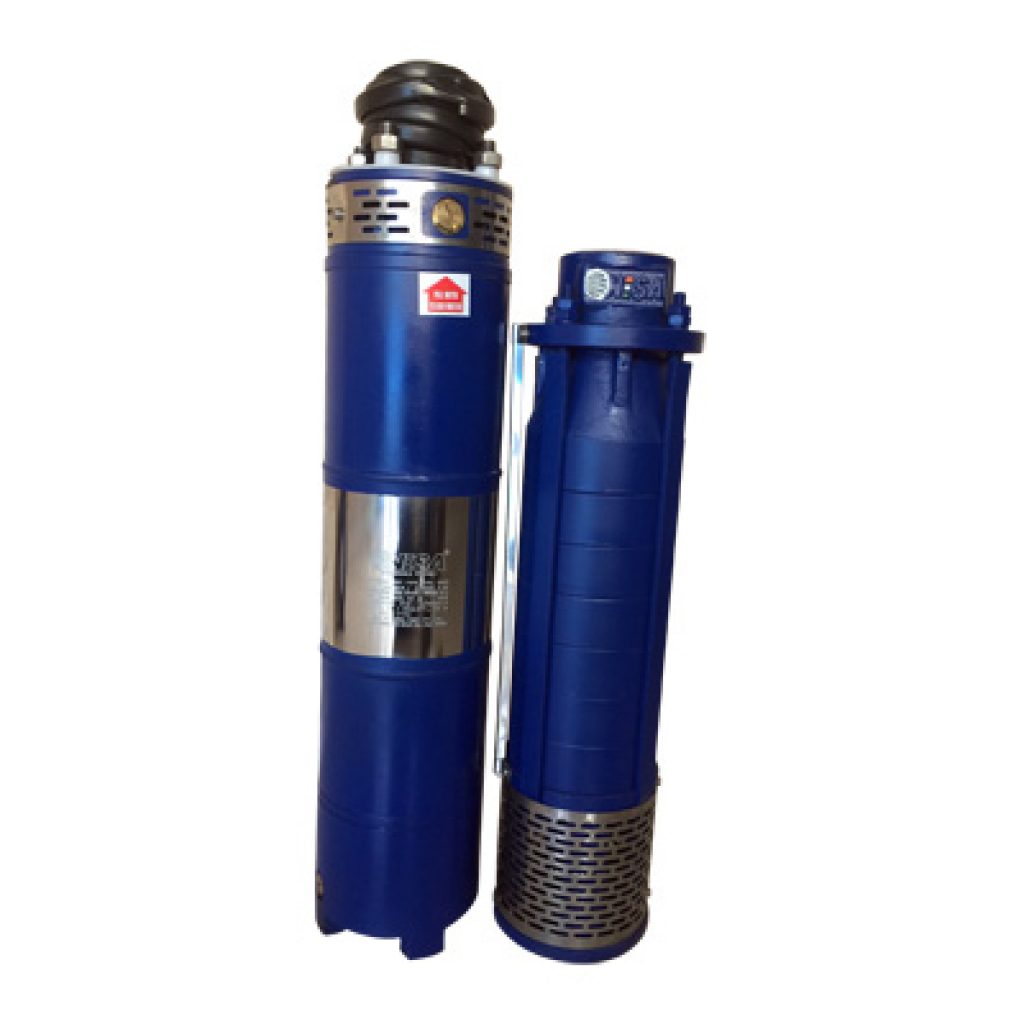

PERFORMANCE TABLE
|
Borewell Size :150.0 mm
Pump O.D. :142.0 mm Motor O.D.:142.0 mm |
||||||||||||
Sr. No. | Pump Type | HP. | Stage | Delivery Size 50 mm (2”) | Performance Values | Method of Starting | Recom. Cable in sq. mm | ||||||
Discharge in L.P.M. | |||||||||||||
45 | 80 | 92 | 115 | 155 | 190 | 240 | |||||||
1 | NR6-30 | 3 | 8 | Total Head in Meters | 66 | 64 | 62 | 56 | 42 | 28 | 3 | DOL | 2.5 |
2 | NR6-30 | 3 | 10 | 82 | 81 | 77 | 70 | 53 | 35 | 4 | DOL | 2.5 | |
3 | NR6-30 | 4 | 12 | 98 | 97 | 92 | 84 | 63 | 42 | 4 | DOL | 2.5 | |
4 | NR6-30 | 4 | 13 | 106 | 105 | 100 | 91 | 68 | 46 | 5 | DOL | 2.5 | |
5 | NR6-30 | 4 | 14 | 115 | 113 | 108 | 98 | 74 | 49 | 5 | DOL | 2.5 | |
6 | NR6-30 | 5 | 15 | 123 | 121 | 116 | 105 | 79 | 53 | 6 | DOL | 2.5 | |
7 | NR6-30 | 5 | 16 | 131 | 129 | 123 | 112 | 84 | 56 | 6 | DOL | 2.5 | |
8 | NR6-30 | 5 | 17 | 139 | 137 | 131 | 119 | 89 | 60 | 6 | DOL | 2.5 | |
9 | NR6-30 | 6 | 18 | 147 | 145 | 139 | 126 | 95 | 63 | 7 | DOL | 2.5 | |
10 | NR6-30 | 6 | 20 | 164 | 161 | 154 | 140 | 105 | 70 | 9 | DOL | 2.5 | |
11 | NR6-30 | 7.5 | 24 | 197 | 193 | 185 | 168 | 126 | 64 | 10 | DOL / SD | 4.0 / 2.5 | |
12 | NR6-30 | 7.5 | 25 | 205 | 201 | 193 | 175 | 131 | 88 | 11 | DOL / SD | 4.0 / 2.5 | |
13 | NR6-30 | 7.5 | 26 | 213 | 209 | 200 | 182 | 137 | 91 | 11 | DOL / SD | 4.0 / 2.5 | |
14 | NR6-30 | 10 | 28 | 229 | 225 | 216 | 196 | 147 | 98 | 12 | S / D | 4 | |
15 | NR6-30 | 10 | 30 | 246 | 242 | 231 | 210 | 158 | 105 | 13 | S / D | 4 | |
16 | NR6-30 | 10 | 32 | 262 | 258 | 246 | 224 | 168 | 112 | 14 | S / D | 4 | |
Sr. No. | Pump Type | HP. | Stage | Delivery Size 50 mm (2”) | Performance Values | Method of Starting | Recom. Cable in sq. mm | ||||||
Discharge in L.P.M. | |||||||||||||
55 | 85 | 115 | 150 | 205 | 230 | 290 | |||||||
1 | NR6-40 | 3 | 6 | Total Head in Meters | 52 | 50 | 46 | 42 | 32 | 21 | 3 | DOL | 2.5 |
2 | NR6-40 | 3 | 7 | 60 | 58 | 54 | 49 | 37 | 25 | 4 | DOL | 2.5 | |
3 | NR6-40 | 3 | 8 | 69 | 67 | 62 | 56 | 42 | 28 | 4 | DOL | 2.5 | |
4 | NR6-40 | 4 | 10 | 86 | 83 | 77 | 70 | 53 | 35 | 5 | DOL | 2.5 | |
5 | NR6-40 | 5 | 12 | 103 | 100 | 92 | 84 | 63 | 42 | 6 | DOL | 2.5 | |
6 | NR6-40 | 6 | 14 | 121 | 117 | 108 | 98 | 74 | 49 | 7 | DOL | 2.5 | |
7 | NR6-40 | 6 | 15 | 129 | 125 | 116 | 105 | 79 | 53 | 8 | DOL | 2.5 | |
8 | NR6-40 | 7.5 | 18 | 155 | 150 | 139 | 126 | 95 | 63 | 9 | DOL / SD | 4.0 / 2.5 | |
9 | NR6-40 | 7.5 | 20 | 172 | 167 | 154 | 140 | 105 | 70 | 10 | DOL / SD | 4.0 / 2.5 | |
10 | NR6-40 | 10 | 22 | 189 | 185 | 139 | 154 | 116 | 77 | 13 | S / D | 4 | |
11 | NR6-40 | 10 | 24 | 207 | 202 | 185 | 168 | 126 | 84 | 14 | S / D | 4 | |
12 | NR6-40 | 10 | 25 | 215 | 210 | 193 | 175 | 131 | 88 | 15 | S / D | 4 | |
13 | NR6-40 | 12.5 | 28 | 241 | 235 | 216 | 196 | 147 | 98 | 17 | S / D | 4 | |
14 | NR6-40 | 12.5 | 30 | 258 | 252 | 231 | 210 | 158 | 105 | 18 | S / D | 4 | |
Sr. No. | Pump Type | HP. | Stage | Delivery Size 50 mm (2”) | Performance Values | Method of Starting | Recom. Cable in sq. mm | ||||||
Discharge in L.P.M. | |||||||||||||
65 | 155 | 175 | 185 | 225 | 260 | 305 | |||||||
1 | NR6-50 | 3 | 5 | Total Head in Meters | 45 | 44 | 39 | 35 | 26 | 18 | 2 | DOL | 2.5 |
2 | NR6-50 | 3 | 6 | 54 | 53 | 46 | 42 | 32 | 21 | 2 | DOL | 2.5 | |
3 | NR6-50 | 4 | 7 | 63 | 61 | 54 | 49 | 37 | 25 | 3 | DOL | 2.5 | |
4 | NR6-50 | 4 | 8 | 72 | 70 | 62 | 56 | 42 | 28 | 3 | DOL | 2.5 | |
5 | NR6-50 | 5 | 10 | 90 | 88 | 77 | 70 | 53 | 35 | 4 | DOL | 2.5 | |
6 | NR6-50 | 6 | 12 | 108 | 105 | 92 | 84 | 63 | 42 | 5 | DOL | 2.5 | |
7 | NR6-50 | 7.5 | 14 | 126 | 123 | 108 | 98 | 74 | 49 | 5 | DOL / SD | 4.0 / 2.5 | |
8 | NR6-50 | 7.5 | 15 | 135 | 131 | 116 | 105 | 79 | 53 | 6 | DOL / SD | 4.0 / 2.5 | |
9 | NR6-50 | 7.5 | 16 | 149 | 140 | 123 | 112 | 84 | 56 | 6 | DOL / SD | 4.0 / 2.5 | |
10 | NR6-50 | 10 | 18 | 162 | 158 | 139 | 126 | 95 | 63 | 7 | S / D | 2.5 | |
11 | NR6-50 | 10 | 20 | 180 | 175 | 154 | 140 | 105 | 70 | 8 | S / D | 2.5 | |
12 | NR6-50 | 12.5 | 24 | 216 | 210 | 185 | 168 | 126 | 84 | 10 | S / D | 4 | |
13 | NR6-50 | 12.5 | 25 | 225 | 219 | 193 | 175 | 131 | 88 | 10 | S / D | 4 | |
14 | NR6-50 | 12.5 | 26 | 234 | 228 | 200 | 182 | 137 | 91 | 10 | S / D | 4 | |
15 | NR6-50 | 15 | 28 | 252 | 245 | 216 | 196 | 147 | 98 | 11 | S / D | 4 | |
16 | NR6-50 | 15 | 30 | 270 | 263 | 231 | 210 | 158 | 105 | 12 | S / D | 4 | |
Sr. No. | Pump Type | HP. | Stage | Delivery Size 50 mm (2”) | Performance Values | Method of Starting | Recom. Cable in sq. mm | ||||||
Discharge in L.P.M. | |||||||||||||
75 | 165 | 210 | 245 | 285 | 310 | 360 | |||||||
1 | NR6-60 | 3 | 5 | Total Head in Meters | 46 | 44 | 39 | 35 | 26 | 18 | 2 | DOL | 2.5 |
2 | NR6-60 | 4 | 6 | 56 | 53 | 46 | 42 | 32 | 21 | 2 | DOL | 2.5 | |
3 | NR6-60 | 4 | 7 | 65 | 61 | 54 | 49 | 37 | 25 | 3 | DOL | 2.5 | |
4 | NR6-60 | 5 | 8 | 74 | 70 | 62 | 56 | 42 | 28 | 3 | DOL | 2.5 | |
5 | NR6-60 | 6 | 10 | 93 | 88 | 77 | 70 | 53 | 35 | 4 | DOL | 2.5 | |
6 | NR6-60 | 7.5 | 12 | 112 | 105 | 92 | 84 | 63 | 42 | 5 | DOL / SD | 4.0 / 2.5 | |
7 | NR6-60 | 10 | 15 | 140 | 131 | 116 | 105 | 79 | 53 | 6 | S / D | 4 | |
8 | NR6-60 | 10 | 16 | 149 | 140 | 123 | 112 | 84 | 56 | 6 | S / D | 4 | |
9 | NR6-60 | 12.5 | 18 | 168 | 158 | 139 | 126 | 95 | 63 | 8 | S / D | 4 | |
10 | NR6-60 | 12.5 | 20 | 186 | 175 | 154 | 140 | 105 | 70 | 8 | S / D | 4 | |
11 | NR6-60 | 15 | 22 | 205 | 193 | 169 | 154 | 116 | 77 | 9 | S / D | 4 | |
12 | NR6-60 | 15 | 24 | 225 | 210 | 185 | 168 | 126 | 84 | 10 | S / D | 4 | |
13 | NR6-60 | 15 | 25 | 233 | 219 | 193 | 175 | 131 | 88 | 10 | S / D | 4 | |
14 | NR6-60 | 15 | 26 | 243 | 228 | 200 | 182 | 137 | 91 | 10 | S / D | 4 | |
15 | NR6-60 | 17.5 | 28 | 261 | 245 | 216 | 196 | 147 | 98 | 11 | S / D | 6 | |
16 | NR6-60 | 17.5 | 30 | 280 | 263 | 231 | 210 | 158 | 105 | 12 | S / D | 6 | |
17 | NR6-60 | 20 | 32 | 299 | 280 | 246 | 224 | 168 | 112 | 18 | S / D | 6 | |
Sr. No. | Pump Type | HP. | Stage | Delivery Size 50 mm (2”) | Performance Values | Method of Starting | Recom. Cable in sq. mm | ||||||
Discharge in L.P.M. | |||||||||||||
80 | 175 | 265 | 295 | 335 | 375 | 420 | |||||||
1 | NR6-70 | 3 | 4 | Total Head in Meters | 37 | 35 | 31 | 28 | 21 | 14 | 2.5 | DOL | 2.5 |
2 | NR6-70 | 4 | 5 | 47 | 44 | 39 | 35 | 26 | 18 | 3 | DOL | 2.5 | |
3 | NR6-70 | 4 | 6 | 56 | 53 | 46 | 42 | 32 | 21 | 4 | DOL | 2.5 | |
4 | NR6-70 | 5 | 7 | 66 | 61 | 54 | 49 | 37 | 25 | 5 | DOL | 2.5 | |
5 | NR6-70 | 6 | 8 | 75 | 70 | 62 | 56 | 42 | 28 | 5 | DOL | 2.5 | |
6 | NR6-70 | 7.5 | 10 | 94 | 88 | 77 | 70 | 53 | 35 | 6 | DOL / SD | 4.0 / 2.5 | |
7 | NR6-70 | 10 | 12 | 113 | 106 | 93 | 84 | 63 | 42 | 7 | S / D | 4 | |
8 | NR6-70 | 10 | 14 | 131 | 123 | 108 | 98 | 74 | 49 | 9 | S / D | 4 | |
9 | NR6-70 | 10 | 15 | 141 | 131 | 116 | 105 | 79 | 53 | 9 | S / D | 4 | |
10 | NR6-70 | 12.5 | 18 | 169 | 158 | 139 | 126 | 95 | 63 | 11 | S / D | 4 | |
11 | NR6-70 | 15 | 20 | 188 | 175 | 154 | 140 | 105 | 70 | 13 | S / D | 4 | |
12 | NR6-70 | 15 | 22 | 205 | 193 | 169 | 154 | 116 | 77 | 14 | S / D | 4 | |
13 | NR6-70 | 17.5 | 24 | 223 | 210 | 185 | 168 | 126 | 84 | 16 | S / D | 6 | |
14 | NR6-70 | 17.5 | 25 | 234 | 219 | 193 | 175 | 131 | 88 | 16 | S / D | 6 | |
15 | NR6-70 | 20 | 26 | 242 | 228 | 200 | 182 | 137 | 91 | 17 | S / D | 6 | |
16 | NR6-70 | 20 | 28 | 261 | 245 | 216 | 196 | 147 | 98 | 18 | S / D | 6 | |
17 | NR6-70 | 22.5 | 32 | 299 | 280 | 246 | 224 | 168 | 112 | 18 | S / D | 6 | |
Sr. No. | Pump Type | HP. | Stage | Delivery Size 50 mm (2”) | Performance Values | Method of Starting | Recom. Cable in sq. mm | ||||||
Discharge in L.P.M. | |||||||||||||
55 | 120 | 255 | 300 | 375 | 430 | 510 | |||||||
1 | NR6-80 | 4 | 5 | Total Head in Meters | 49 | 48 | 44 | 40 | 30 | 20 | 3 | DOL | 2.5 |
2 | NR6-80 | 5 | 6 | 59 | 58 | 53 | 48 | 36 | 24 | 4 | DOL | 2.5 | |
3 | NR6-80 | 6 | 7 | 69 | 67 | 62 | 56 | 42 | 28 | 4 | DOL | 2.5 | |
4 | NR6-80 | 7.5 | 8 | 88 | 86 | 79 | 72 | 54 | 36 | 5 | DOL / SD | 4.0 / 2.5 | |
5 | NR6-80 | 7.5 | 10 | 98 | 96 | 88 | 80 | 60 | 40 | 6 | DOL / SD | 4.0 / 2.5 | |
6 | NR6-80 | 10 | 12 | 118 | 115 | 106 | 96 | 72 | 48 | 7 | S / D | 4 | |
7 | NR6-80 | 12.5 | 14 | 138 | 134 | 123 | 112 | 84 | 56 | 8 | S / D | 4 | |
8 | NR6-80 | 12.5 | 15 | 147 | 144 | 132 | 120 | 90 | 60 | 9 | S / D | 4 | |
9 | NR6-80 | 12.5 | 16 | 157 | 154 | 140 | 128 | 96 | 66 | 9 | S / D | 4 | |
10 | NR6-80 | 15 | 18 | 177 | 173 | 158 | 144 | 108 | 72 | 11 | S / D | 4 | |
11 | NR6-80 | 17.5 | 20 | 197 | 192 | 176 | 160 | 120 | 80 | 12 | S / D | 6 | |
12 | NR6-80 | 17.5 | 22 | 216 | 211 | 194 | 176 | 132 | 88 | 13 | S / D | 6 | |
13 | NR6-80 | 20 | 24 | 236 | 230 | 211 | 192 | 144 | 96 | 14 | S / D | 6 | |
14 | NR6-80 | 20 | 25 | 246 | 240 | 220 | 200 | 150 | 100 | 15 | S / D | 6 | |
15 | NR6-80 | 22.5 | 28 | 275 | 269 | 246 | 224 | 168 | 112 | 16 | S / D | 6 | |
16 | NR6-80 | 25 | 30 | 295 | 288 | 264 | 240 | 180 | 120 | 18 | S / D | 10 | |
Sr. No. | Pump Type | HP. | Stage | Delivery Size 50 mm (2”) | Performance Values | Method of Starting | Recom. Cable in sq. mm | ||||||
Discharge in L.P.M. | |||||||||||||
140 | 270 | 330 | 350 | 400 | 435 | 470 | |||||||
1 | NR6-100 | 3 | 3 | Total Head in Meters | 32 | 30 | 36 | 24 | 18 | 12 | 2 | DOL | 2.5 |
2 | NR6-100 | 4 | 4 | 42 | 40 | 35 | 32 | 24 | 16 | 2 | DOL | 2.5 | |
3 | NR6-100 | 5 | 5 | 53 | 50 | 44 | 40 | 30 | 20 | 3 | DOL | 2.5 | |
4 | NR6-100 | 6 | 6 | 61 | 60 | 53 | 48 | 36 | 24 | 4 | DOL | 2.5 | |
5 | NR6-100 | 7.5 | 7 | 74 | 70 | 62 | 56 | 42 | 28 | 4 | DOL / SD | 4.0 / 2.5 | |
6 | NR6-100 | 7.5 | 8 | 85 | 80 | 70 | 64 | 48 | 32 | 5 | DOL / SD | 4.0 / 2.5 | |
7 | NR6-100 | 10 | 10 | 106 | 100 | 88 | 80 | 60 | 40 | 6 | S / D | 4 | |
8 | NR6-100 | 12.5 | 12 | 127 | 120 | 106 | 96 | 72 | 48 | 7 | S / D | 4 | |
9 | NR6-100 | 15 | 14 | 148 | 140 | 123 | 112 | 84 | 56 | 8 | S / D | 4 | |
10 | NR6-100 | 15 | 15 | 159 | 150 | 132 | 120 | 90 | 60 | 9 | S / D | 4 | |
11 | NR6-100 | 17.5 | 18 | 192 | 180 | 158 | 144 | 108 | 72 | 12 | S / D | 6 | |
12 | NR6-100 | 20 | 20 | 218 | 200 | 176 | 160 | 120 | 80 | 12 | S / D | 6 | |
13 | NR6-100 | 22.5 | 22 | 240 | 220 | 193 | 178 | 132 | 88 | 16 | S / D | 6 | |
14 | NR6-100 | 25 | 25 | 273 | 273 | 220 | 200 | 150 | 100 | 16 | S / D | 10 |
